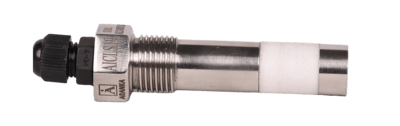

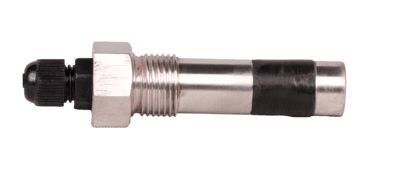

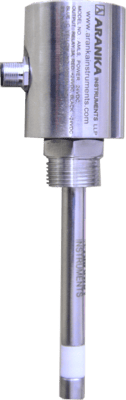

Conductive Level Switch
Conductivity level switches work by detecting the presence of a conductive liquid between two or more electrodes. When a conductive liquid bridges the gap between the electrodes, it completes an electrical circuit, triggering a signal. This signal can be used to indicate the liquid level, activate pumps, or trigger alarms.
- Conductive level switches are easy to install and operate.
- Conductive level switches are rugged construction.
- conductive level switch are not costly.
- They don’t required any calibration.
- They don’t have any moving parts.
- It Can Work in High Temperature.
| Power | 24VDC/ 230VAC | |

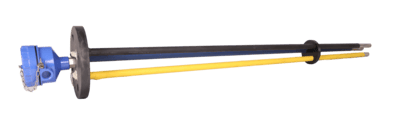

| Sensor Rod Sensing | Single Rod / Multiple Rod. | |
| Sensor MOC | SS304, SS316, Titanium. | |
| Sensor Length | 50 mm to 3000mm. | |
| Sensor Connection | Thread, Flange, Try Clamp. | |
| Sensor Control Mount | Local / Remote Mounting. | |
| Sensor Control output | Relay 3A 1co. | |
| Sensor Terminal | Aluminum Flame Proof, Weather Proof, Wall Mount, Panel mount | |
| Operating Temperature | 0 ~ 200 ‘C | |
| Operating Pressure | 0 ~ 15 bar | |
| Others | Customized Sensor Available. | |
As Per Application
As Per Application
I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Any Conductive Liquid Sensing and controlling.
