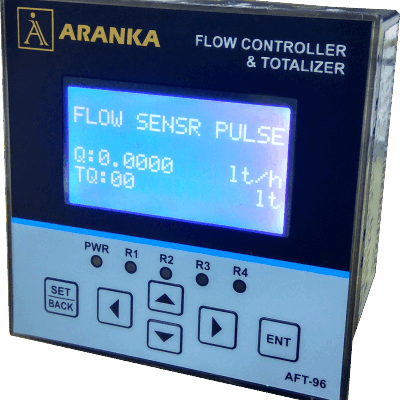

AFT96 Flow Meter Manufacturer
AFT96 Flow Meter totalizer is use to measure Total Flow Consumption & Current Flow From any Flow Meter Like Electromagnetic flow meter, Paddle Wheel Flowmeter, Oval Gear, Vortex Flowmeter Etc… AFT96 is 16 Bit Microcontroller Based Instrument which have Universal input 4-20mA & Pulse. AFT96 also Can Measure Open Channel Flow measurement for any Parshall Flumes or Weir.
- Universal input 4-20mA & Pulse.
- work as Remote Flowmeter Display.
- Work As Open channel Flowmeter.
- Outstanding accuracy.
- Panel Mount 96x96x85 mm Instrument.
- It Can Work as Batch Controller.
| Power | 90 ~260VAC@50Hz or 24VDC | |
| Input | 4-20mA & Pulse | |
| Display | LCD | |
| Output | Relay 2 nos. 3A 1 Co | |
| Analogue Output | 4-20mA | |
| Flow type Selection | Front Key | |
| Size | 96x96x85 mm | |
| Cut out Size | 92×92 mm | |
| Communication Output | RS 485 Modbus RTU | |
Coming Soon.
- As Remote Flow Totalizer
- As Batch Controller
- As Open channel Flowmeter
Frequently Asked Questions (FAQs)
What is AFT96?
AFT96 is a 16-bit microcontroller-based flow totalizer that displays both instantaneous flow and total flow, and works with a variety of flow meters including electromagnetic, vortex, paddle wheel, and oval gear.
What inputs does the AFT96 accept?
It supports 4–20 mA and pulse inputs from flow sensors.
Can AFT96 act as a batch controller or open channel flowmeter?
Yes. It can function as a batch controller, and also supports open channel flow measurement (for Parshall flumes or weirs).
What outputs and communication options are available?
- Two relay outputs (3A, 1 changeover)
- Analog output (4–20 mA)
- RS-485 communication with Modbus RTU protocol
What is the power supply requirement?
The AFT96 can run on 90–260 VAC @ 50 Hz or 24 VDC.
What is the display type and form factor?
It uses an LCD display, and the module is sized 96 × 96 × 85 mm, with a panel cut-out of 92 × 92 mm.
