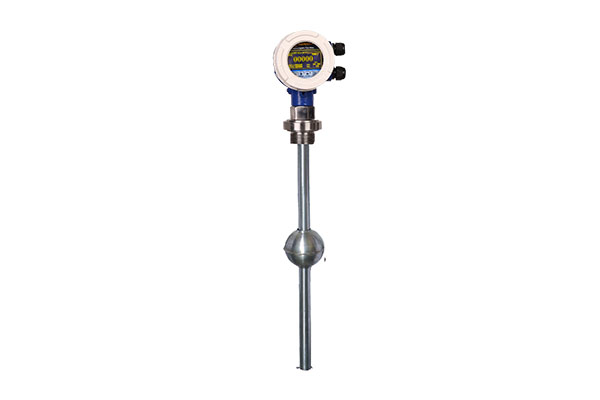

Float Level Transmitter Manufacturer
Aranka Instruments LLP is a leading Float Level Transmitter Manufacturer and Supplier in Ahmedabad, delivering reliable float-type level sensors engineered for a wide range of liquid level monitoring needs. Our transmitters utilize a buoyant float that moves up or down with the liquid’s surface. The float’s vertical displacement is converted into an output signal (typically 4–20 mA) that correlates with the liquid level. Detection of the float’s position is achieved via reed switches, potentiometers, or magnetic coupling depending on the design variant.
Constructed for durability and precision, the Aranka Float Level Transmitter is ideal for applications in water treatment, storage tanks, fuel tanks, industrial vessels, chemical processes, and more. The simplicity, low maintenance, and robustness make it a preferred choice for continuous level measurement in diverse industrial environments.
- Simple and reliable design.
- Easy installation.
- Wide range of applications.
- Analogue Output 4-20mA.
- Front OLED Display.
| Power Supply | 24VDC | |
| Range | Max. 2000 mm | |
| Sensor MOC | SS 316 | |
| Output | 4 -20mA | |
| Resolution | 6 mm | |
| Enclosure MOC | Aluminum | |
| Protection | IP67 | |
| Communication Output | RS 485 Modbus RTU [Optional] | |
| Process Connections | DIN, ANSI Flanges, Tri-Clamp | |
| Max. Pressure | 15 Bar | |
| Max. Temperature | -20 ~60’C | |
CE Approved
ISO 9001 : 2025
Frequently Asked Questions (FAQs)
What is a Float Level Transmitter?
A float level transmitter measures liquid levels using a buoyant float that rises and falls with the liquid surface. The movement is converted into an electrical signal, usually 4–20 mA, representing the liquid level.
How does a Float Level Transmitter work?
As the liquid level changes, the float moves vertically. Its position is detected using reed switches, potentiometers, or magnetic coupling, which translate mechanical movement into an electrical output.
What are the output and signal options?
Standard output is 4–20 mA, with optional digital RS-485 Modbus communication available for integration with PLC or SCADA systems.
What are the key advantages of this transmitter?
-
Simple and reliable construction
-
Low maintenance and long life
-
Accurate and stable signal output
-
Cost-effective for continuous monitoring
-
Works well for water, fuels, and light industrial liquids
Where can it be used?
Ideal for water treatment plants, chemical tanks, fuel storage systems, industrial vessels, and process automation where reliable liquid level detection is needed.
What are the limitations of a Float Level Transmitter?
It’s not suitable for viscous, sticky, or slurry-type liquids, and may be affected by turbulence or strong agitation if not properly installed.
How is the transmitter installed and maintained?
Mount it vertically in the tank so the float moves freely along its guide. Clean the float periodically to prevent obstruction or buildup for stable performance.
Why choose Aranka Instruments LLP?
As a trusted Float Level Transmitter Manufacturer and Supplier in Ahmedabad, Aranka Instruments provides high-quality, durable, and precision-engineered transmitters backed by expert support and reliable after-sales service.
