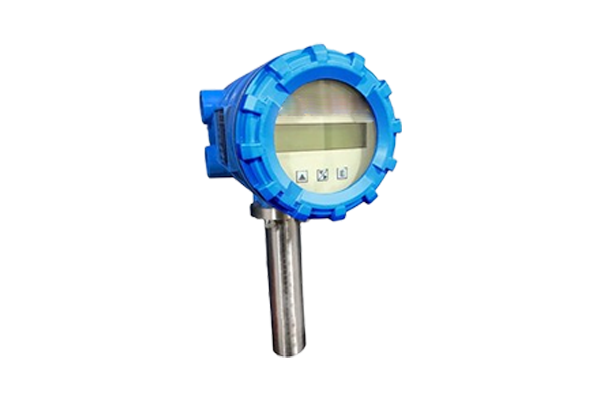

Insertion of 1400B A range of conductive liquids can have their flow rates measured with an electromagnetic flow meter. It operates on the basis of the basic idea of Faraday’s law of electromagnetic induction, which explains how an electrical conductor and the voltage it produces when moving within a magnetic field are related.
Two electrical coils positioned diametrically and set outside the flow tube create a magnetic field in an electromagnetic flow meter. An electrical voltage that is directly proportionate to the conductive liquid’s velocity is induced in the liquid as it moves through this electromagnetic field. Both the liquid flow and the electromagnetic field’s orientations are perpendicular to this produced voltage. It is sensed by two electrodes that are positioned diametrically along the inner wall of the flow tube and in the direction of the induced voltage. The transmitter further processes the sensed voltage to produce a standard output signal proportional to the measured flow rate and to show the flow rate.
- Adjustable depth
- Can be used in pipes from 4″ to 80″
- Comes with isolation valve
- No moving parts
- Multiple Signal Outputs
| Nominal Diameter | 4″ to 80″ | |
| Working Process Pressure | 250 psi | |
| Electrode Material | Hastelloy C | |
| Wetted Material | 316 SS, Hastelloy C, PTFE | |
| Flow Sensor Rating | IP66, NEMA4X | |
| Minimum Liquid Conductivity | 10µ siemens | |
| Accuracy of Measured Value | ±1% of span | |
| Repeatability | ±0.2% of Span | |
| Measuring Range | 0.65 to 39 ft/sec Bi-directional | |
| Display Version | Integral | |
| Display Type | 16 characters x 2 row LCD, 5 Digit Flow rate and 8 Digit Totalizer | |
| Units | Flow Rate | Totalizer |
| LPS, LPM, LPH, LPD Mlps, Mlpm, Mlph, Mlpd cc/s, cc/m, cc/h, cc/d m3/s, m3/m, m3/h, m3/d kg/s, kg/m, kg/h, kg/d t/s, t/m, t/h, t/d gps, gpm, gph, gpd Mgps, Mgpm, Mgph, Mgpd lgps, lgpm, lgph, lgpd lMgps, lMgpm, lMgph, lMgpd ft3/s, ft3/m, ft3/h, ft3/d lb/s, lb/m, lb/h, lb/d bbl/d, bbl/h, bbl/s | L, Ml, m³ Ml L, Ml, cc, m³ L, Ml, m³ kg, t T G, ft³ Mg lg, ft³ lMg g, lg, ft³ lb bbl | |
| Current Output | 4 to 20 mA and Pulse | |
| Digital Output | Modbus RS485 or HART | |
| Power Supply | 18 to 60 VDC or 80 to 300 VAC | |
| Electrical Connection | 1/2″ NPT | |
| Operating Temperature | -20°F to 250°F (-28°C to 120°C) | |
| Process Connection | 1.5” MNPT or 2” Weldolet | |
