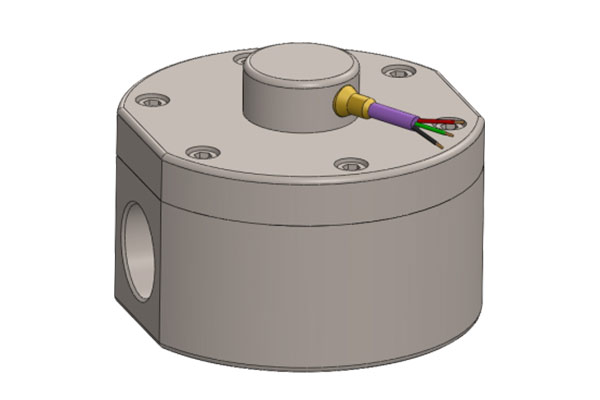

Oval Gear Flow Meter Manufacturer

As a leading Oval Gear Flow Meter Manufacturer and Supplier, Aranka Instruments LLP provides high-precision positive displacement (PD) flow meters designed for accurate measurement of viscous and non-conductive liquids. Built on proven mechanical technology developed over five decades ago, these meters feature precision-engineered oval gears enclosed in a durable casing to ensure exceptional accuracy, repeatability, and long operational life. Recognized as a reliable Oval Gear Flow Meter Manufacturer in Ahmedabad, we deliver robust instruments tailored for process industries where precision and reliability are critical.

Our Oval Gear Flow Meters work on the principle of volumetric displacement — when the liquid passes through the meter, it drives the oval gears to rotate, and each rotation displaces a fixed amount of fluid. Contactless sensors detect every gear tooth movement, generating a high-resolution pulse signal directly proportional to the flow rate. This technology enables accurate measurement of even the smallest flow volumes. As a trusted Oval Gear Flow Meter Supplier in Ahmedabad, Aranka Instruments offers meters suitable for oils, fuels, lubricants, and chemicals, providing stable performance, low maintenance, and long service life across industrial applications.

  • Traditional proven flow technology
  • Simple to install
  • No straight pipe runs are required so flow meters can be installed in restricted areas
  • S.S 304 & S.S.316 MOC Available
  • Pulse output.
Power 5 ~24 VDC
Output NPN Pulse
Media Diesel / Oil
Accuracy +/- 0.5 % of reading
Operating Temperature -20 ~ 80’C
Max. Pressure 50 Bar Aluminum Body / 150 Bar S.S. Body.
Line Size 3 ~ 80 mm
Flow Range 3 mm : 0.5 ~ 35 LPH 25 mm : 500 ~ 4000 LPH
6 mm : 5 ~ 150 LPH 40 mm : 1000 ~ 10000 LPH
9 mm : 15 ~ 300 LPH 50 mm : 5000 ~ 20000 LPH
13 mm : 100 ~ 1500 LPH 80 mm : 10000 ~ 100000 LPH
19 mm : 200 ~ 2200 LPH
Flow Controller AFT 96 / AIFT22
Process Connections Thread in BSP / NPT
Electronics Direct Mount or Remote Mount

The oval gear flow meter is designed primarily for use with higher-viscosity fluids, which has led to applications such as the flow metering of oils, syrups, and fuels.

Frequently Asked Questions (FAQs)

What is an Oval Gear Flow Meter?

An Oval Gear Flow Meter is a positive displacement flow meter that measures the flow of liquids by counting the rotations of precisely machined oval gears inside the meter body.

How does it work?

The liquid flow rotates the oval gears; each rotation displaces a known volume, and sensors convert this motion into pulse signals proportional to the flow rate.

What is the accuracy of an Oval Gear Flow Meter?

Typical accuracy is around ±0.5% of reading, improving with higher viscosity liquids.

What types of fluids can be measured?

It is ideal for oils, fuels, lubricants, chemicals, and other viscous or non-conductive liquids.

Where are these meters commonly used?

They are used in oil and gas, chemical processing, lubrication systems, and dosing or batching applications.

Do Oval Gear Flow Meters require maintenance?

They have no sliding parts, ensuring minimal wear and very low maintenance requirements.

What outputs are available?

They provide pulse or frequency outputs, which can be connected to totalizers, batch controllers, or PLC systems.

Why choose Aranka Instruments LLP?

Aranka offers ISO-certified, precision-engineered flow meters designed for long life, accuracy, and compatibility with automation systems across industrial applications.
