Ozone Analyzer Manufacturer
We are a trusted Ozone Analyzer manufacturer and supplier in Ahmedabad, Gujarat, offering advanced liquid ozone sensors designed for accurate and reliable ozone level monitoring in water. These analyzers are widely used in drinking water treatment plants, swimming pools, industrial process control, and environmental monitoring applications to ensure proper disinfection while preventing excessive ozone exposure. Each system delivers consistent, high-precision readings that help maintain safe and efficient water quality standards.

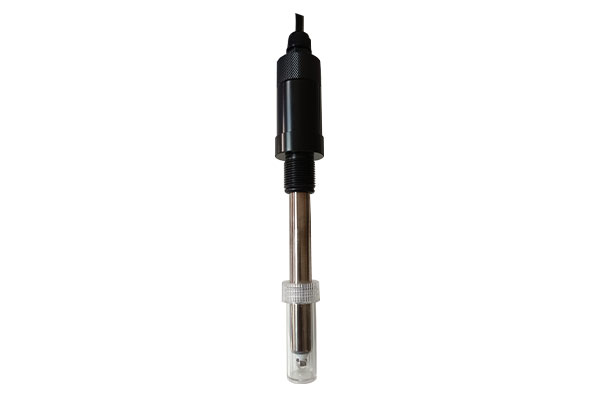

The AIUA24144 Ozone Analyzer Controller, when paired with the AILDZ25900 sensor and flow cell, provides precise measurement of dissolved ozone concentration. Its membrane-free constant voltage design eliminates the need for membrane or reagent replacement, offering high sensitivity, excellent stability, and low maintenance. Engineered for modern water treatment and industrial systems, this analyzer ensures cost-effective, dependable, and long-term performance for continuous ozone measurement and process safety.
- Accuracy and Reliability
- Front Key Calibration and Low Maintenance
- Fast Response Time
| Power Supply | 100 ~260 VAC @ 50Hz OR 24VDC | |
| Measuring Range | 0.00 ~20.00 mg/l | |
| Accuracy | +/- 5% F.S | |
| Display | OLED LCD | |
| Output | 2 nos. Relay 3A 1CO | |
| Communication | RS485 Modbus RTU | |
| Analogue output | 4-20mA | |
| Size | 96x96x85mm | |
| Panel Cut out | 92×92 mm | |
| Enclosure | ABS | |
| Operating Temperature | -10 ~55’C | |
CE Approved
ISO 9001 : 2025
Drinking Water
Wastewater Treatment
Swimming Pools
Industrial Process Water
Frequently Asked Questions (FAQs)
What is an Ozone Analyzer?
An ozone analyzer is an instrument used to measure dissolved ozone concentration in water, ensuring effective disinfection and preventing overexposure. It is widely used in water treatment, swimming pools, and industrial processes.
What is the AIUA24144 Controller?
The AIUA24144 is a digital controller designed for water treatment and industrial process control. It processes signals from the ozone sensor, displays readings, and provides analog, relay, and RS-485 outputs for monitoring and control.
In which applications can it be used?
-
Drinking water and wastewater treatment
-
Swimming pools and spas
-
Industrial process water
-
Environmental monitoring
What are the key features of the Ozone Analyzer?
-
Membrane-free design — no membrane or reagent replacement needed
-
High accuracy & sensitivity with excellent stability
-
Fast response and easy front-key calibration
-
Low maintenance and long service life
What are the main technical specifications?
-
Measuring Range: 0–20 mg/L
-
Accuracy: ±5% F.S.
-
Power Supply: 100–260 VAC (50 Hz) / 24 VDC
-
Output: 4–20 mA / RS-485 (Modbus RTU) / 2 Relay (3A 1 CO)
-
Display: OLED LCD
-
Operating Temp: –10 °C to +55 °C
Does it require frequent maintenance or calibration?
No. The membrane-free sensor design requires only simple cleaning and rare calibration, making it highly user-friendly and cost-effective.
