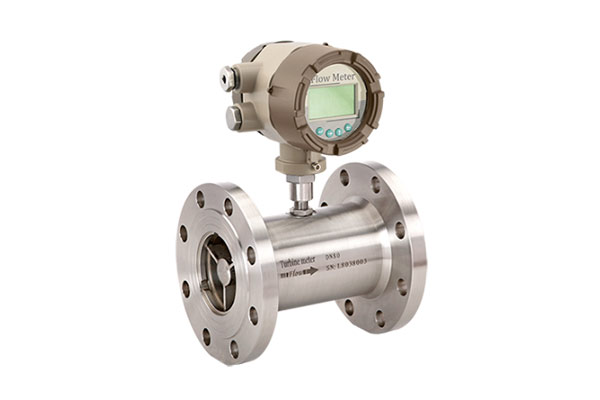

Turbine Flow Meter
Operating Principle
Fluid entering the meter first passes through an inlet flow straightener that reduces its turbulent flow pattern. Fluid then passes through the turbine, causing the turbine to rotate at a speed proportional to fluid velocity. As each turbine blade passes through the magnetic field generated by the meter’s magnetic pickup, an AC voltage pulse is generated. These pulses provide an output frequency that is proportional to volumetric flow.
- Simple and firm structure, easy for installation and dismantling.
- High resistance to electromagnetic interference and vibration.
- Small loss of pressure, fine repeatability and high precision.
- Wide range of measuring with very low lower flow velocity limit.
- The turbine flow sensor is of hard alloy bearing thrust type, which may guarantee the precision and improve the wear resistance performance as well.
| Power | 24VDC | |
| Line Size | 20 mm to 200 mm | |
| Media | Any Clear Liquide | |
| Accuracy | +/- 1% / +/- 0.5% / +/- 0.2% of rate | |
| Body MOC | S.S.304, S.S.316 | |
| Rotor MOC | 2Cr13, CD4MCu | |
| Display | LCD | |
| Analogue Output | 4-20 mA | |
| Communication | RS485 [Optional] | |
| Electronics | Direct Mount | |
| Process Connections | DIN, ANSI Flanges, Tri-Clamp | |
| Bearing Material | Tungsten Carbide | |
| Max. Pressure | 0 – 15 Bar | |
| IP Protection | IP65 | |
| Temperature Range | Basic | -20°C to 80°C |
| Standard | -20°C to 120°C | |
| High | -20°C to 150°C | |
As per Application
I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
- these are used in oil and gas,
- water and wastewater [Treated Water],
- chemical,
- power, food, and beverage,
- aerospace, pharmaceutical,
- metals and mining, and pulp and paper.
